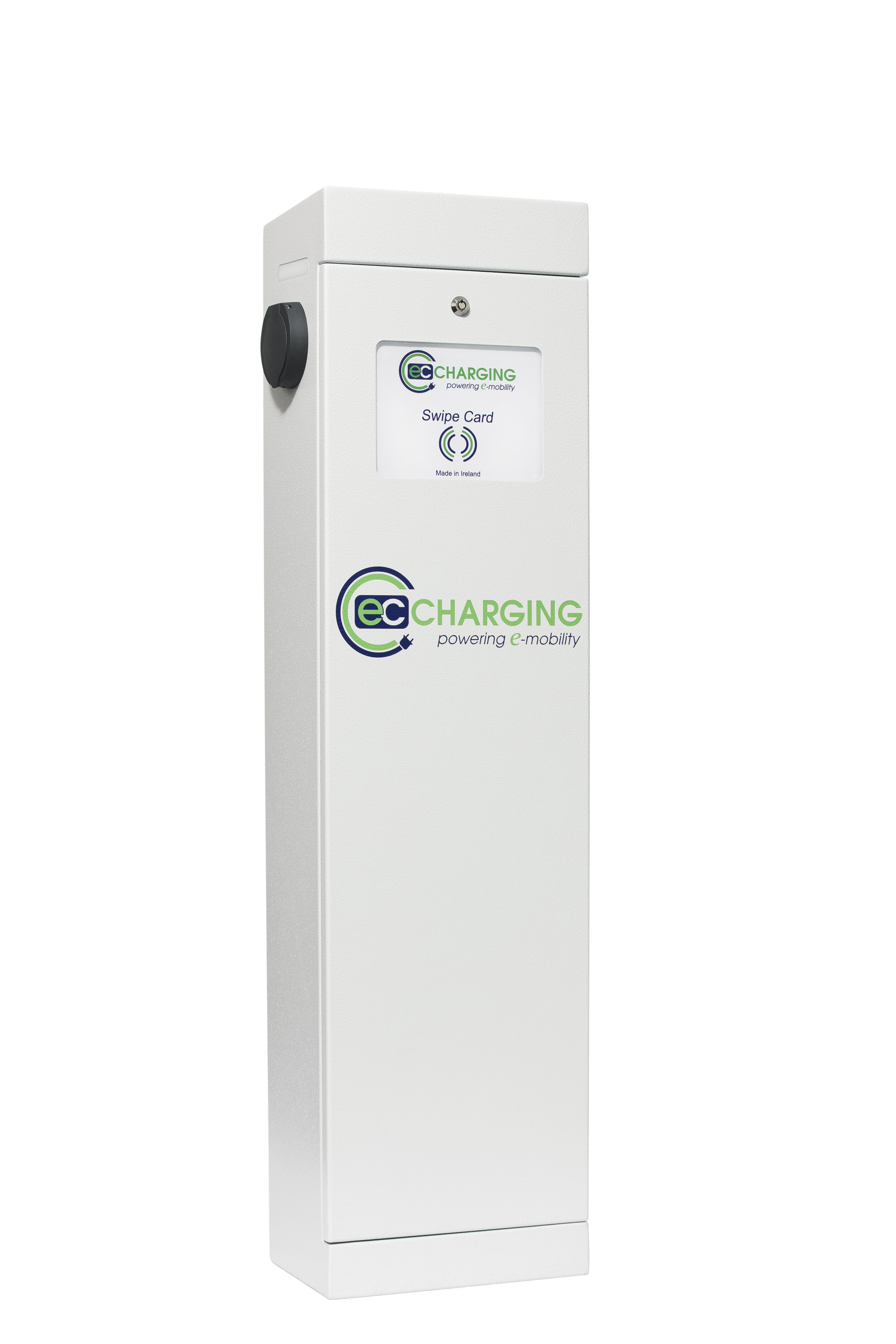

Electric Vehicle Dual Outlet Pedestal Charger
Designed for busy workplaces, commercial and public locations. Mobile phone payment facility with flexible tariff options. Visually attractive, simple to operate and easy to install
Dual socket units, charging two vehicles simultaneously
Open Charge Point Protocol (OCCP)Complaint enabling connection to open platform back office systems avoiding proprietary and locked in systems
Available in 7kW power per socket (single phase)
Powder coated Stainless Steel enclosure
MID certified meters with utilization history
Access by RFID or mobile phone app. ® Online monitoring for billing and remote
Communications by GPRS or Ethernet
Overcurrent and earth leakage protection per socket
Dynamic Load Balancing
Technical Specification
Dimensions H 570 D 180 W 320 (mm)
Energy Meter Mid Approved
Mains Connection 230V to 400V 50Hz
Charging Output 3kW to 22kW AC (single/three phase)
Current Protection ECD Type A 40A MCB Type B 40A
Socket Type 2 EV Sockets
Operating Temperature (-) 20° to (+) 55°C
Chargepoint protocol OCP V1.6
Standards IEC62196-2 IEC61851 (1) (22)
Protection IP55 Protected
Outer Casing Stainless Steel Casing
Communication GSM GPRS Integrated
